Article number: | ImpactM4CopperSTD25 |
Availability: | In stock |

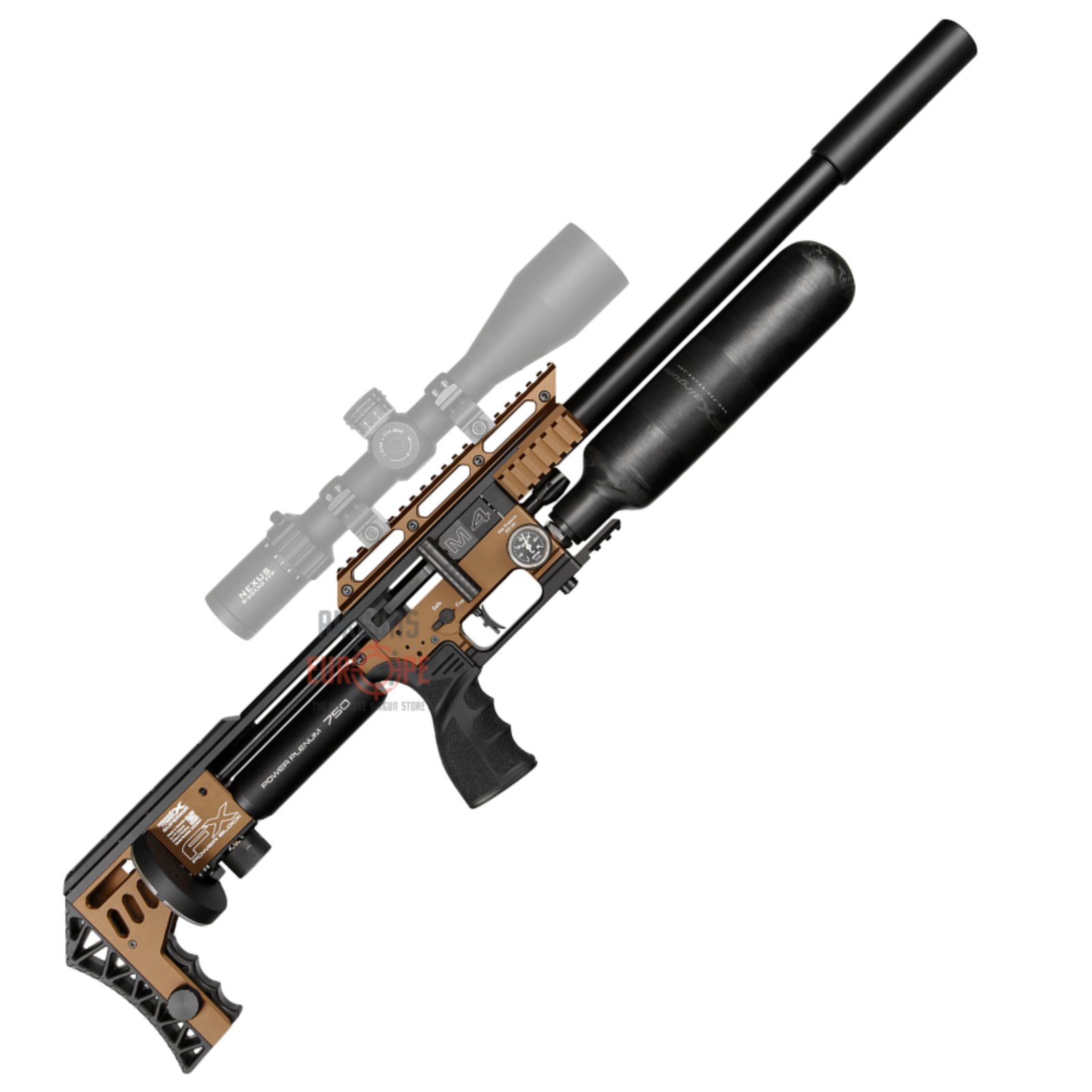

The FX Impact M4 is the fourth generation of the Impact line. These PCP air rifles are known for their high modularity and adjustability.
This modular design makes the Impact extremely widely applicable. Whether it's competitions, pest control or hunting, the Impact can do it all!
This Standard version of the FX Impact M4 is equipped with a 600mm barrel with an STX Standard liner and a 480cc 250 bar carbon bottle.
The M4 has quite a few changes compared to its predecessor, the Impact M3.
Some parts have been completely redesigned, but there are also small subtle adjustments.
Power & Adjustability
The most important feature is of course the adjustability.
In addition to very high power, the Impact M4 can also offer the more subtle low power ranges.
This makes the Impact M4 just as good a choice for shooting the heaviest slugs as the lightest (even lead-free) pellets.
When adjusting the power, in addition to achieving the desired power, it is also possible to "fine-tune" it get it extremely consistent velocities.
The Impact M4 has the following adjustment options:
AMP regulator
The regulator is one of the most important parts of a good PCP rifle.
This pressure regulator ensures that this air rifle uses exactly the same pressure for every shot.
This regulator can be adjusted from the outside to a maximum of 170 BAR.
As long as the pressure in the reservoir is higher than the set pressure, the regulator will fill the plenum to this pressure for each shot.
Where the Impact M3 used the dual regulator system, the M4 has a single regulator with a higher filling speed.
It is now equipped with a brass piston, which is sturdier and more consistent than its plastic predecessor.
Valve adjuster
The Valve adjuster is located between the bottle and the barrel.
This knob allows the spring tension of the valve to be adjusted. This spring tension decides how long the valve remains open at the bulkhead.
Markings appear when turning outwards. The further out the knob is, the more air the valve can let through.
Quick Tune System
Working closely with the Valve adjuster is the renowned Quick Tune System that adjusts the hammer spring tension.
This system consists of 2 adjustment knobs on the left side of the Impact.
This Macro knob (16 steps from 1.5-4.5 m/s) and Micro adjustment knob (finetune steps from 0.3-0.6 m/s) can make the hammer strike the valve with the perfect momentum.
Again, the higher these are set, the more air comes through the valve.
Dual Transfer Port
At the bottom of the rear of the barrel of many air rifles there is a hole through which air can flow into the barrel. This is the transfer port.
Like many FX air rifles, the Impact M4 has a double transfer port with a port on both the bottom and the top.
The standard port is marked with a "P" (pellets). By rotating the barrel 180 degrees, the Impact uses the different "S" (slugs) transfer port with a wider passage for increased flow and power.
Top plate and picatinny rails
The Impact M4 has a completely different top plate than its predecessors.
In addition to the fact that this plate is now thicker for greater strength, a dovetail has now also been milled into it. The 30 MOA Picatinny rails slides into this dovetail.
Because these rails can slide freely, the ideal distance to the eye is not a problem for the M4.
That was no problem for normal optics, but this makes the Impact M4 extremely suitable for short eye-relief rifle scopes such as the MTC SWAT or Element Immersive 14x50 or thermal imaging/night vision scopes with special mounting brackets.
The picatinny rails has a built-in angle of 30MOA.
This means that the rails are already tilted forward by default, so that the scope maintains its adjustment range over longer distances.
Quick Set Trigger
The trigger is also new in every respect. In previous generations, the trigger left something to be desired when the rifle really moved to higher power ranges.
This new trigger group is designed to work perfectly in any style of shooting.
This makes the trigger not only adjustable in weight, but also to the position of the hand and fingers.
Whether these are speed competitions, bench rest or hunting, high or low power ranges. This trigger is perfectly adjustable.
Whether as a hunter or pest controller you want a predictable long stroke, or in shooting sports you prefer a feather-light trigger with a refined breaking point.
This can be adjusted with one screw using the Quick Set Trigger.
In addition, the entire trigger can be moved in distance, the first and second stages are adjustable and the trigger blade is adjustable in height and can be rotated.
Ambidextrous sidelever
Like its predecessors, the Impact M4 uses a smooth sidelever to cycle the system.
This lever is on the right side by default and can easily be converted to the left.
This makes this rifle ideal for left-handed shooters or speed competitions.
New Hi-Cap magazine
The Impact has long been known on the market for its large magazine capacity.
This magazine has also been revised with new, stronger materials. The internal mechanism has been optimized, so that the rotating part still moves smoothly and powerfully even with the heaviest slugs.
The interior of the magazine has now also been made more spacious for longer ammunition.
While the older magazines allowed a maximum of 11mm long ammunition, the new magazines are perfectly suitable for 12mm long pellets or slugs.
UG1 grip
The Impact M4 is equipped with the UG1 pistol grip.
This new grip is surprisingly comfortable to use and can be interchanged with any pistol grip with an AR-15 connection if desired.
STX Barrel system
The Smooth Twist X barrel system can't be missed on FX PCP air rifles.
This barrel system consists of the barrel housing with shroud and an interchangeable liner system.
This interchangeable liner can be exchanged with, for example, the STX Heavy liner with a different twist rate and choke that is optimized for slugs.
The entire barrel can also easily be exchanged for a different caliber or barrel length.
When changing calibers, the pellet probe is now also easier to replace.
Power source: | Pre compressed pneumatic (PCP) |
Caliber: | 5.5mm (.22) | 6.35mm (.25) | 7.62mm (.30) |
Muzzle energy: | 60, 85, 130 joule (medium defaults) |
Fill pressure: | 250 bar |
Air capacity: | 480cc |
Regulator: | Yes |
Operating system: | Sidelever |
Magazine: | 28 | 25 | 23 shots |
Max. projectile length: | 12mm |
Optic mounting: | 22mm picatinny/weaver (11mm underneath top rail) |
Weight: | 3100 gram |
Length: | |
Barrel length: | 600mm |
Muzzle: | 1/2x20 UNF threaded |
Accessories: | Rifle case, supressor, magazine, foster connector |
